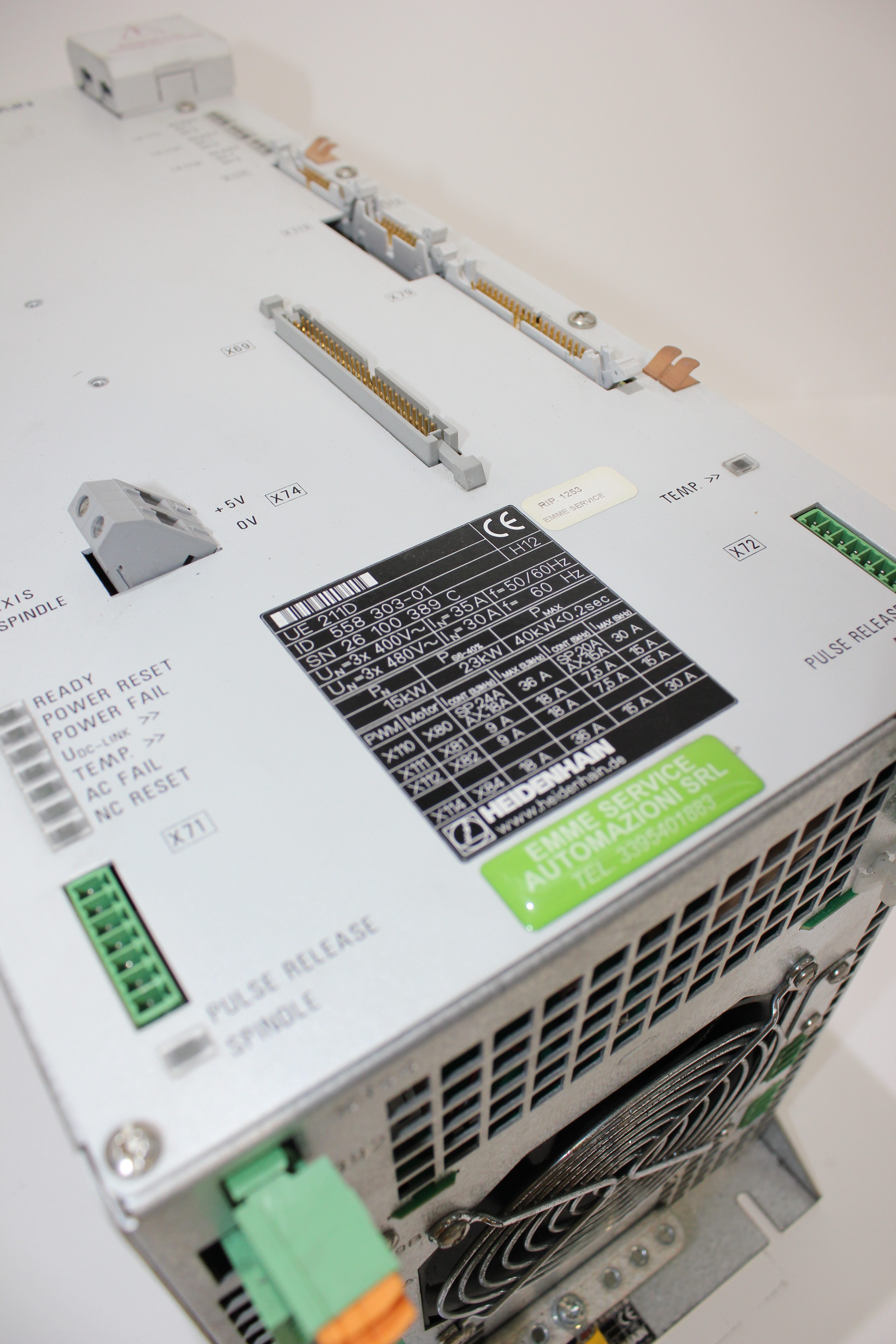

Azionamento Heidenhain UE211D 558303-01
Azionamento Heidenhain UE211D 558303-01
Azionamento Heidenhain 558303-01
UE 211D
Compact inverter
With diagnostic functions and electronic ID lable
Rated current 5 kHz: 2 x 7.5A-axes, 15A-axis
and 20A-spindle or
15A-axis
Max. current at 5 kHz: 2x 15A and 2x 30A
Rated power: 15 kW
Power S6-40%: 23 kW
Peak power: 40kW<0.2s
DC-link voltage: 565 V
Low-voltage power supply
unit: 200 W
Type of heat removal: internal
Braking resistor: internal
Connection for holding
brakes: with connection
Module width: 200.00 mm
